🛡️ LoLTrackGuard: Detecting Scripted Behavior in LoL

LoLTrackGuard is a lightweight system for detecting suspicious mouse behavior in League of Legends gameplay videos. It combines YOLOv8-based cursor detection with an LSTM autoencoder to identify anomalies in cursor movement patterns — no game logs or invasive tools required.

🎯 Input: 1080p 30FPS gameplay video
🖱️ Step 1: Detect cursor positions using a trained YOLO model
📐 Step 2: Extract and normalize motion features (velocity, acceleration, etc.)
🧠 Step 3: Feed into LSTM autoencoder to score anomalies
📊 Output: CSV with per-second anomaly scores

Trained on real pro player data, LoLTrackGuard offers a non-intrusive way to flag potential automation behavior in gameplay footage.

📁 Project Structure

LoLTrackGuard-MAIN/
├── cursor_templates/                # Cursor icon PNGs with transparency (for FakeDataGenerator)
├── extension/                       # C++/CUDA Acceleration Module
│   ├── setup.py                     # Build script
│   └── src/                         # C++ and CUDA source files
├── model/                           # Trained LSTM models for anomaly detection
│   ├── detection_model.keras        # Default trained LSTM model
│   ├── detection_model2.keras       # Alternate model versions
│   └── detection_model3.keras
├── mouse_positions/                # Output CSVs from cursorDetector with raw mouse position data
├── pipeline/                       # Core logic scripts
│   ├── analyzer.py                 # Runs analysis using a trained model
│   ├── cursorDetector.py          # Detects cursor in videos using YOLO and outputs CSV
│   ├── cursorDetector_accelerated.py # High-Performance version (C++/Numba)
│   ├── dataModifier.py            # Extracts motion features and normalizes them
│   └── modelTrainer.py            # Trains LSTM anomaly detection model
├── utils/                          # Resource files and utility scripts
│   ├── cursorDetector_x.pt        # Primary YOLOv8 model for cursor detection
│   ├── FakeDataGenerator.py       # Script to generate synthetic training data for YOLO
│   └── universal_scaler.joblib    # Saved standardizer for feature normalization
├── train_pipeline.py               # Full training pipeline: from video to trained model
├── analyze_pipeline.py             # Full analysis pipeline: from video to anomaly scores
├── requirements.txt                # Python dependencies
└── README.md                       # Project documentation

⚙️ Project Setup

1. Install Git LFS (for large model files)

# Install Git LFS from: https://git-lfs.github.com/
git lfs install

2. Install dependencies

pip install -r requirements.txt

🔍 How to Use: Analysis Pipeline (`analyze_pipeline.py`)

🎯 Purpose

Detect anomalies in mouse movement from gameplay recordings using a pre-trained model.

⚠️ Important: Your input video must be in 1080p 30 FPS to ensure proper cursor detection and feature alignment.

🚀 Run

python analyze_pipeline.py

📊 Flow

1. Select a video file (e.g. MP4 screen recording with visible cursor)
Run YOLOv8 to detect and record mouse positions (X, Y, time)
Automatically extract movement features (velocity, acceleration, etc.)
Apply the pre-trained scaler to normalize features
Feed sequences into LSTM autoencoder
Calculate reconstruction error for each 1-second action
Save anomaly scores to CSV

📂 Output

analysis_results/: Contains CSV files listing the reconstruction error per action
Each row corresponds to a 1-second sequence (30 frames), indicating anomaly level

🧠 Train Your Own Model

If you want to train your own LSTM autoencoder model:

Use pipeline/dataModifier.py to extract features from your raw mouse position CSV files.
Use utils/universal_scaler.joblib to normalize the feature vectors.
Use pipleline/modelTrainer.py to train a new model on the processed sequences.

> 💡 Tip: Make sure your input videos are consistently in 1080p 30 FPS.

🧪 How This Works

1. Cursor Detection via YOLOv8 and Synthetic Data

Why Cursor? The goal of this project is to analyze first-person gameplay footage from streamers or content creators. Compared to character behavior, mouse cursor trajectories provide a more direct and reliable signal for detecting potential scripting.

Collected mouse pointer files and replays of games as backgrounds

Used FakeDataGenerator.py to generate over 70,000 labeled synthetic images:

Each frame is overlaid with a randomly selected cursor template
Cursor size, brightness, saturation, and global blur are randomized

These noisy but labeled images were then used to train a YOLOv8-based object detection model capable of detecting mouse positions in real gameplay videos.

🖼️ Figure 1: Cursor Detection Example

2. Behavioral Modeling via LSTM Autoencoder

To avoid subjective judgment in identifying cheaters, use an LSTM autoencoder trained purely on verified human data (non-cheating matches).

The model learns to reconstruct normal human mouse movement patterns. During inference, it flags any sequences with high reconstruction error as potential anomalies, without requiring manual rule definitions.

🧠 Figure 2: LSTM Autoencoder Diagram

3. Feature Engineering with Real Pro Player Data

Collected 50 first-person replays from professional LoL players, extracting over 1.5 million mouse movements.

The raw cursor coordinates are processed using dataModifier.py, which:

Extracts engineered features from raw (X, Y) data
Replaces absolute timestamps with time deltas
Computes per-frame velocity, acceleration (X/Y), angular velocity, and movement distance
Applies universal_scaler.joblib for normalization

The movements are segmented into sequences of 30 steps each (1 second of motion at 30 FPS), representing atomic user actions.

These 500,000+ action sequences are fed into the LSTM for training.

4. Result Evaluation via Reconstruction Error

After running the full analysis pipeline, the analyzer.py script processes the extracted feature sequences using the trained LSTM autoencoder.

For each action (a 1-second sequence of mouse movement), the model calculates a reconstruction error:

Low error → behavior is similar to learned human patterns
High error → behavior is abnormal and potentially scripted or assisted

This allows for quantitative, objective evaluation of suspicious gameplay behavior.

The results are saved to analysis_results/ as CSV files, where each row corresponds to one detected action with its associated anomaly score.

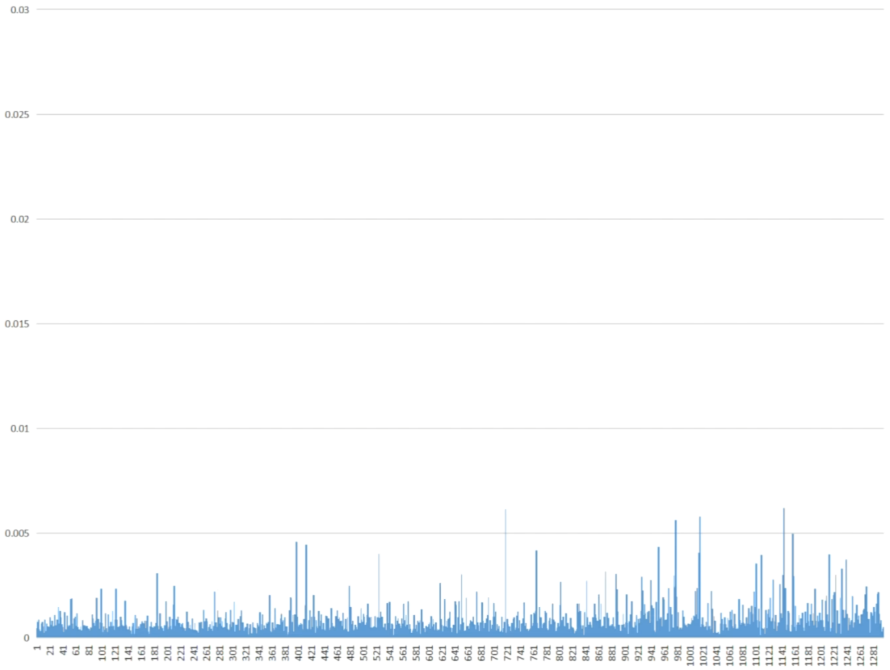

🎮 Figure 3: Pro Player Mouse Movement (Unseen During Training)

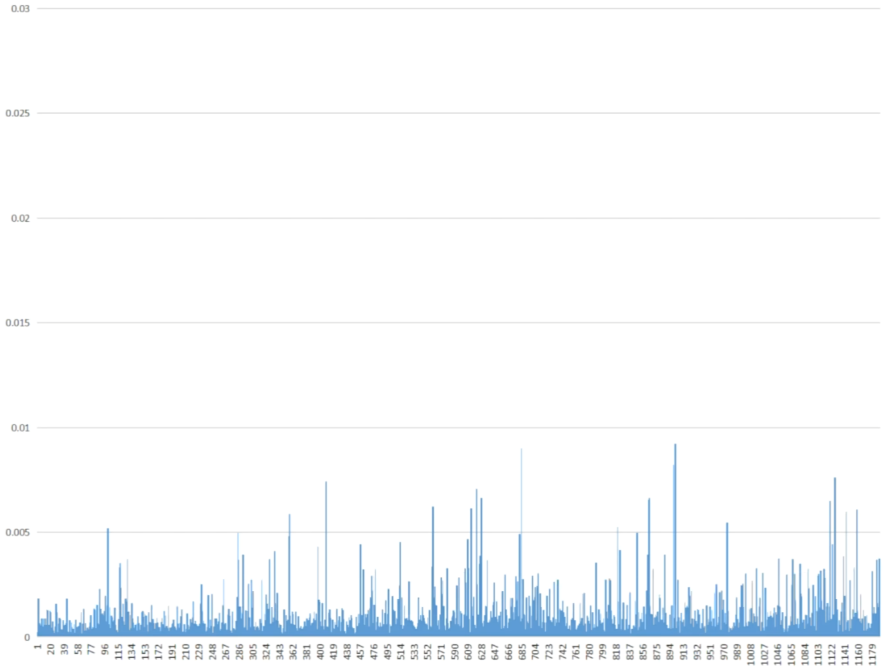

👤 Figure 4: Regular Player Mouse Movement

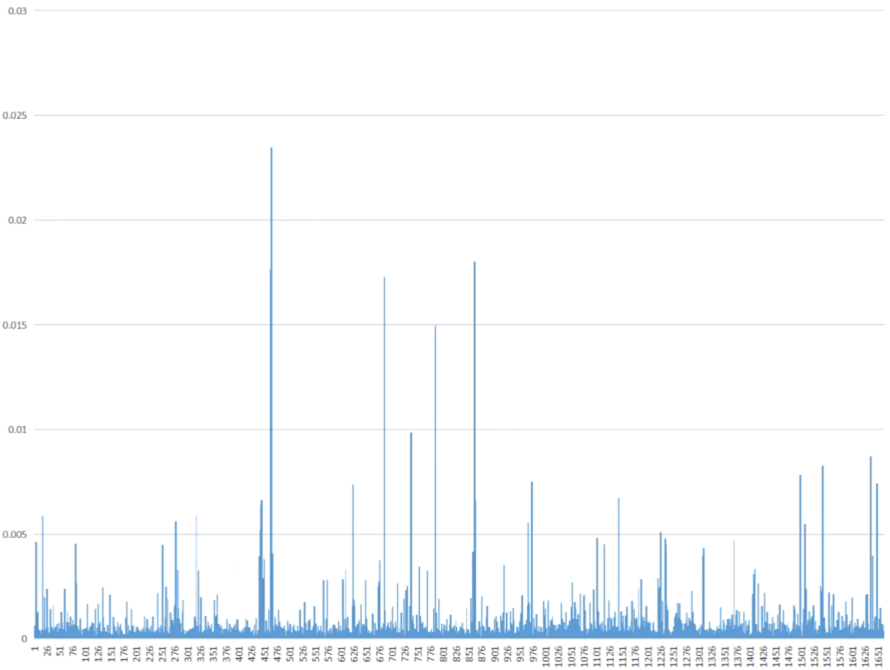

⚠️ Figure 5: Suspicious Gameplay Mouse Movement

🚀 High-Performance Mode (C++/CUDA)

LoLTrackGuard now includes an accelerated processing pipeline.

Features

Hybrid Acceleration: Automatically uses Numba (JIT CUDA) and Threading if the C++ extension is not compiled.
Async Video Decoding: Decouples reading from inference.
Custom CUDA Kernels: Pre-processing filters to highlight cursor candidates.

Setup (Optional C++ Extension)

For maximum performance, you can compile the native C++ extension:

Ensure CUDA Toolkit and Visual Studio (MSVC) are installed.
Configure OpenCV paths in extension/setup.py.
Run:

   cd extension
   python setup.py install
   cd ..
   ``
Usage
Run the accelerated detector:

bash
python pipeline/cursorDetector_accelerated.py
